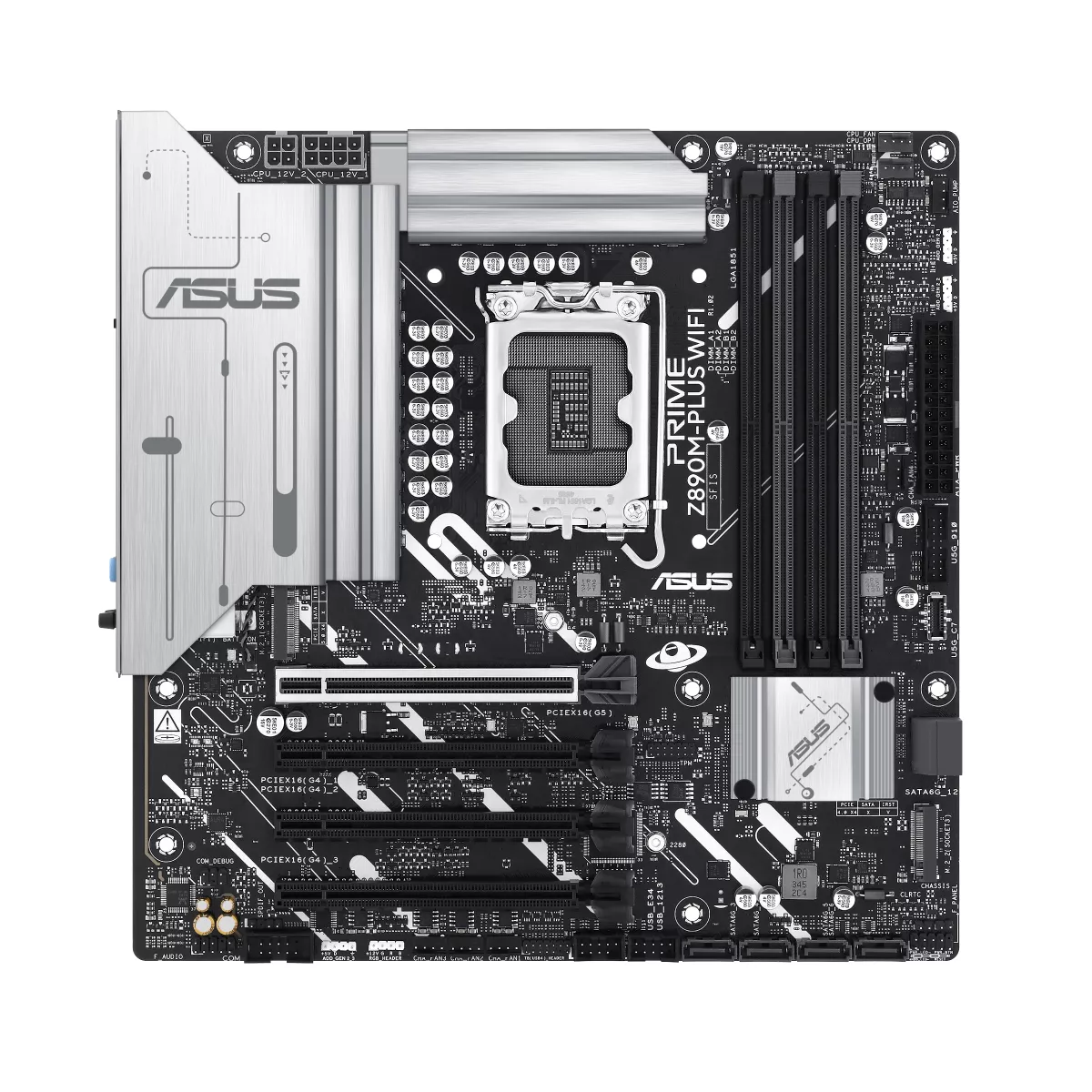

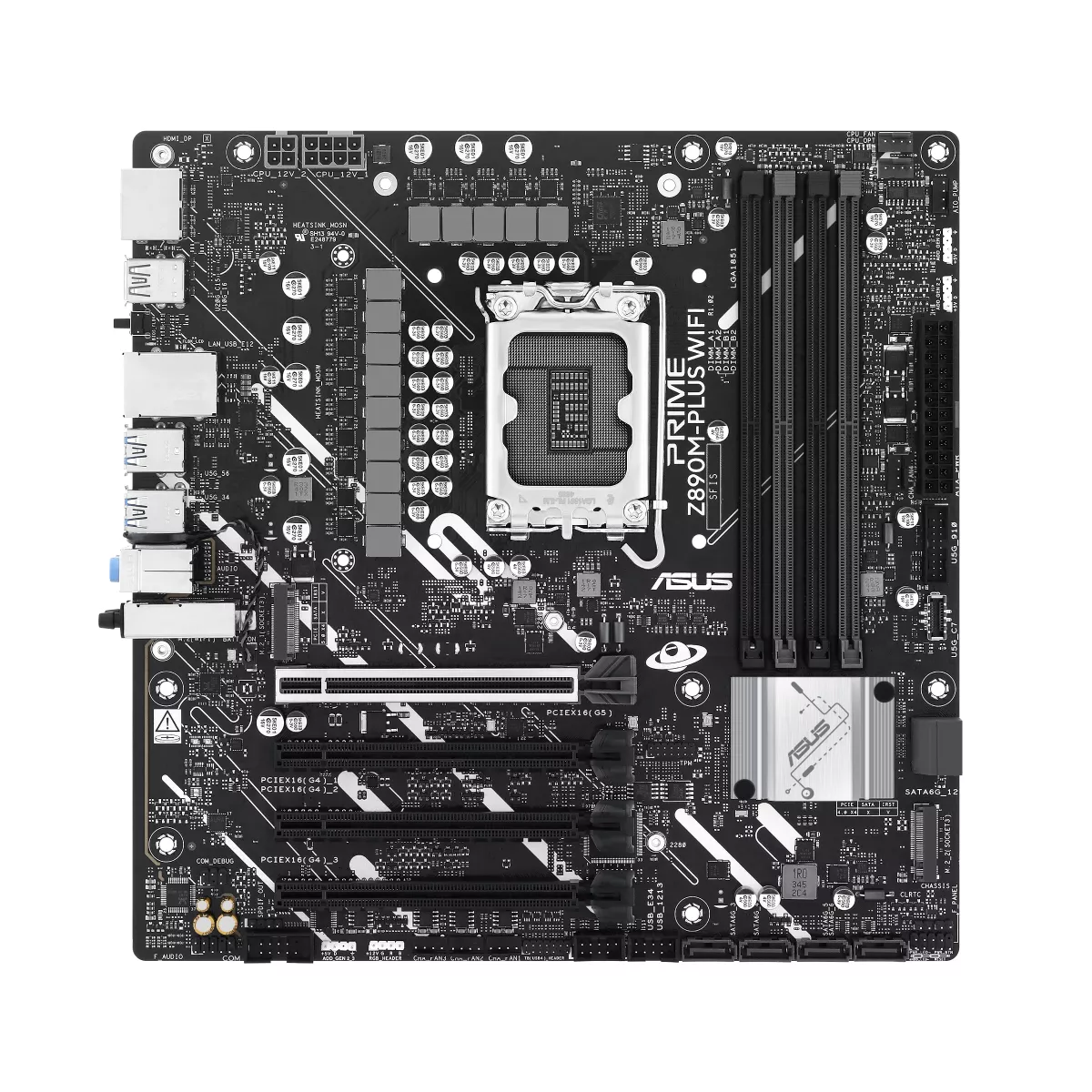

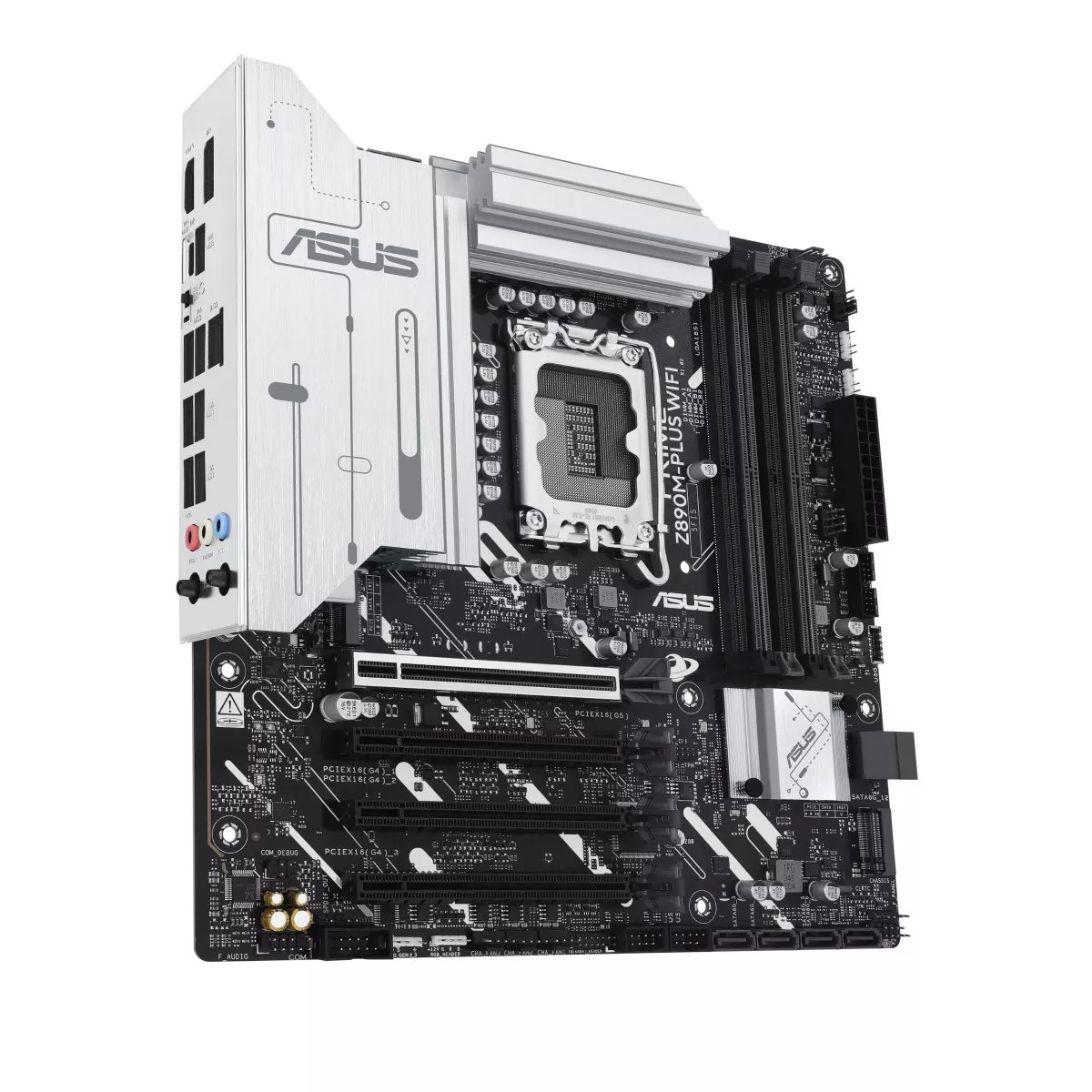

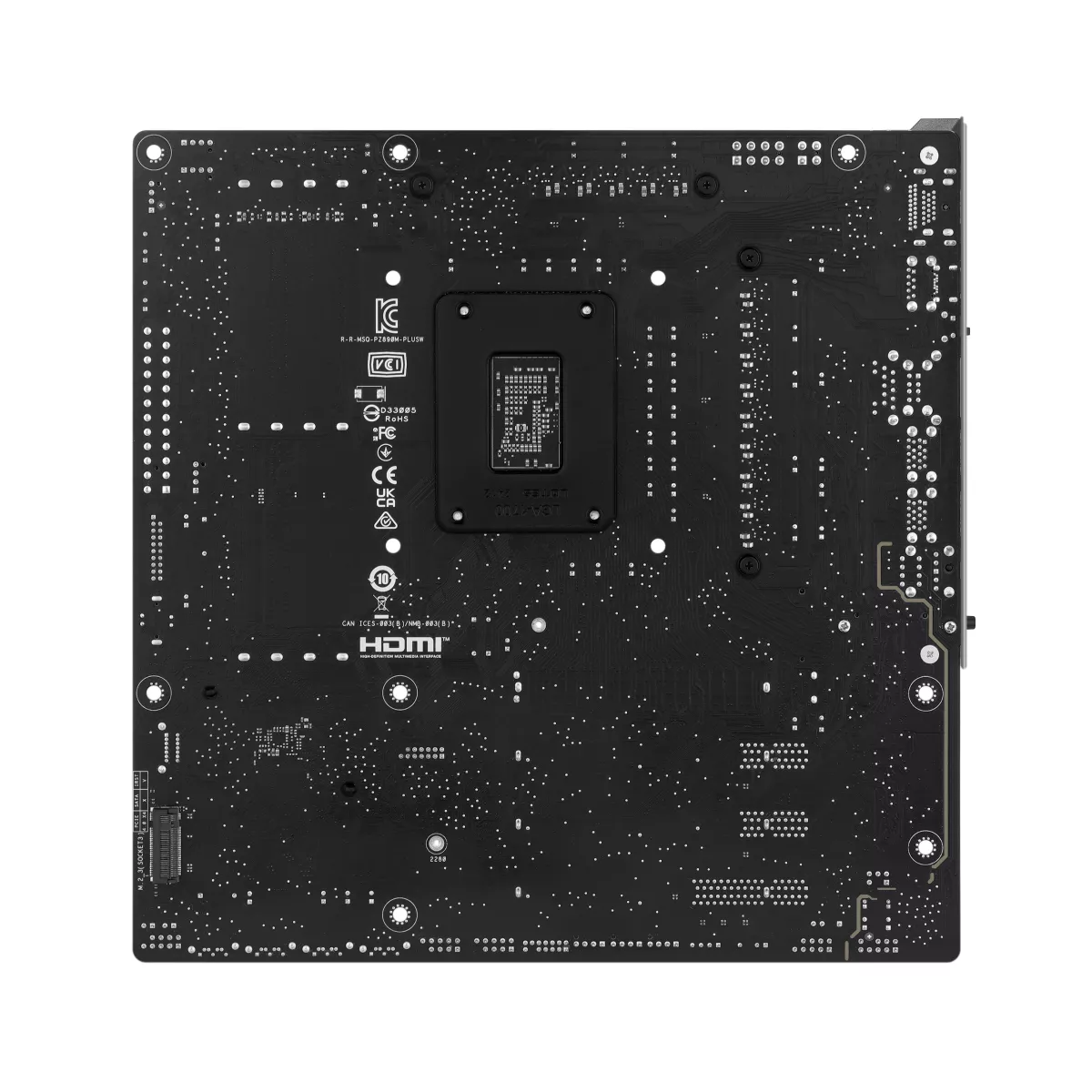

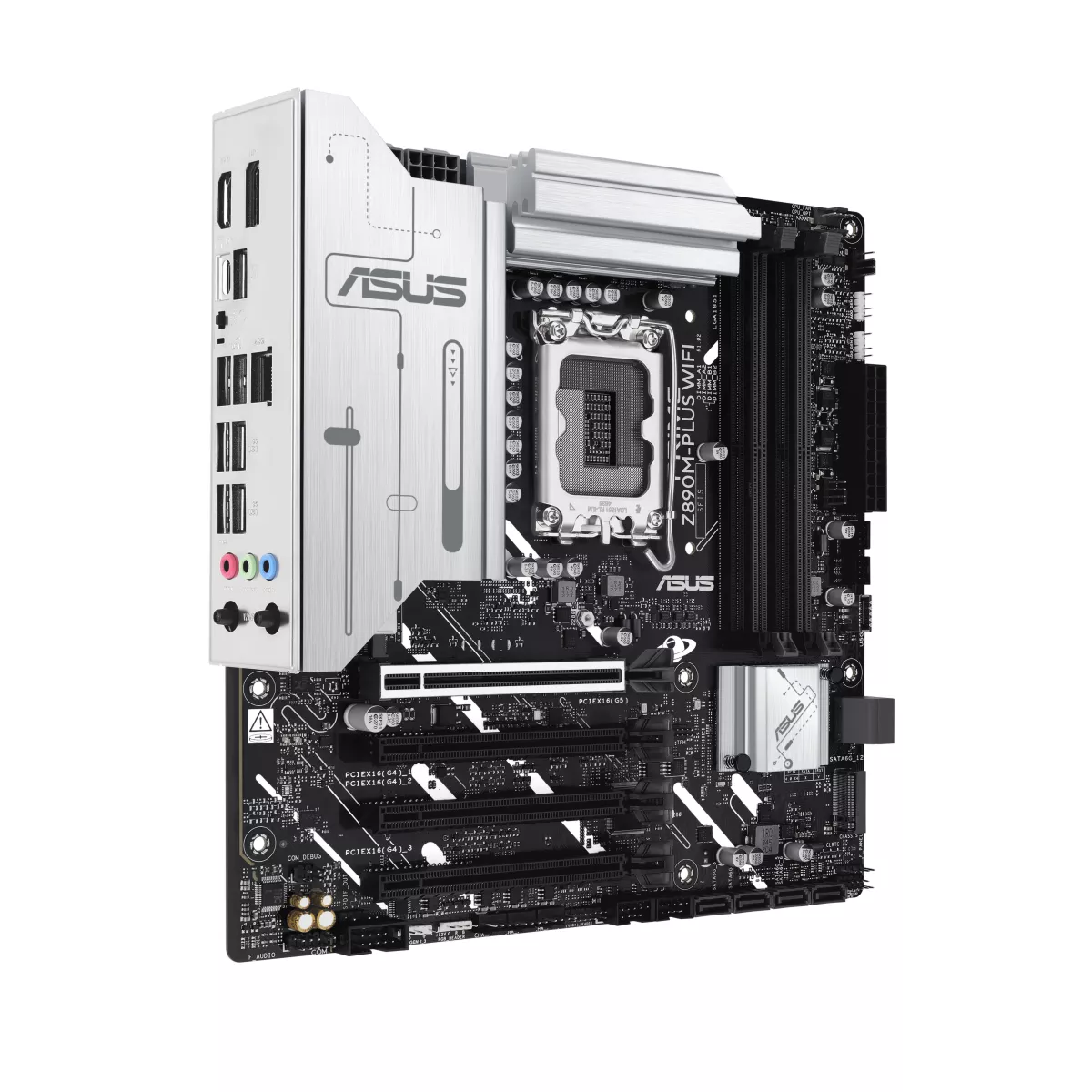

PRIME Z890M-PLUS WIFI
The PRIME Z890M-PLUS WIFI mATX motherboard, Advanced AI PC-ready, 10+1+2+1 80A DrMOS power stages, DDR5 slots, PCIe® 5.0 x16 SafeSlot, and full support for next-gen graphics card, DisplayPort, HDMI™, USB 20Gbps port supports DisplayPort video output, front panel USB 5Gbps Type-C® port, 3 x M.2 slots, Wi-Fi 7 with Q-Antenna, Realtek 2.5 Gb Ethernet, Pre-mounted I/O shield, BIOS FlashBack™, Aura Sync
Product number:
90MB1J80-M0EAY0
EAN:
4711387755419
Item no.:
8707
- Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intel® LGA 1851 Socket: Ready for Intel® Core™ Ultra Processors (Series 2)
- Exclusive AI: AI Cooling II and AI Networking II to simplify setup and improve performance
- Robust Power Solution: 10+1+2+1 80A DrMOS power stages with ProCool power connectors, 6-layer PCB, alloy chokes and durable capacitors for stable power delivery
- Optimized Thermal Design: Large VRM heatsinks and PCH heatsink, hybrid fan headers and Fan Xpert 4 with AI Cooling II
- Latest M.2 Support: One onboard PCIe® 5.0 M.2 slot and two PCIe 4.0 M.2 slots
- Abundant Connectivity: USB 20Gbps port (1 x USB Type-C® with DP Alt mode), front panel USB 5Gbps Type-C® port, Thunderbolt™ (USB4®) header support, PCIe® 5.0 x16 SafeSlot, and full support for next-gen graphics card
- High-Performance Networking: On-board Wi-Fi 7 (802.11be) with ASUS WiFi Q-Antenna and Realtek 2.5 Gb Ethernet
- DIY Friendly Design: Q-Antenna, Q-Dashboard, Q-LED Core, BIOS FlashBack™ button, BIOS FlashBack™ LED and pre-mounted I/O shield
- Unmatched Personalization: three Addressable Gen 2 headers, all configurable with ASUS-exclusive Aura Sync RGB lighting
Product information "PRIME Z890M-PLUS WIFI"
| [GPSR] Manufacturer address: | Harkortstraße 21 - 23, 40880 Ratingen, DE |
|---|---|
| [GPSR] Manufacturer email address: | [email protected] |
| [GPSR] Manufacturer name: | ASUS Computer GmbH |
